RGBLightControl

SCREENSHOTS:

RGBLightControl

APP DESCRIPTION:

Download this app named RGBLightControl.

This project is about a light controlling system with a 4 RGB-LED channels to run different modes:

• autonomously w/o PC performing HSI2RGB transformations and running through the color hues (with dimmable brightness)

• remote operated by PC or embedded user software using the provided C++ Software library (based on Boost libraries)

• ideal platform for color experiments with your RaspberryPi

The system consists of 4 layers:

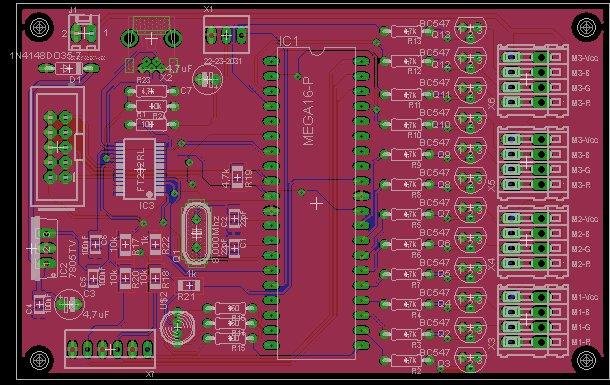

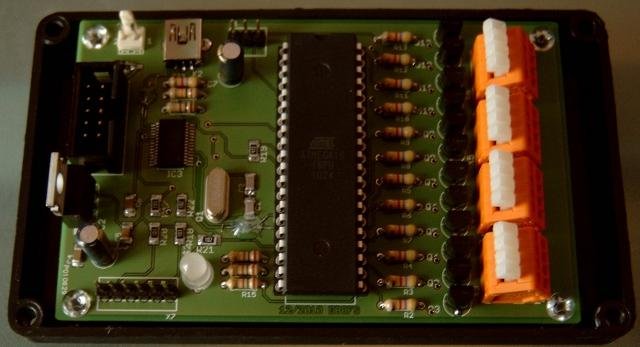

• PCB with Atmel ATmega16 and FT232RL USB interface (Eagle forat)

• Firmware for applying PWM, UART communication and integrated colorspace transformations (AVR-ASM)

• C++-Software for providing a HTTP-Server, a Dreambox picture grabber and basic light sequence player

• HTML5/JavaScript application for remote controlling and configuring the system via Webbrowser

Please use the SVN browser for accessing the whole development snapshot and getting an current tarball!

Features

• RGB and HSI colorspace support in firmware for 4 independent RGB LED modules
• USB-UART communication for controlling LED modules with your PC or Embedded System
• Provides Web interface (webEm and AJAX (Prototype.js and jscolor))
• Perfect extension for your RaspberryPi or your Dreambox!
• Upcoming I²C-support for Accelerometer and Thermometers
• Please use the SVN browser for current development snapshots!

Audience

Science/Research, Advanced End Users, Developers, End Users/Desktop, Engineering

User interface

Web-based

Programming Language

C++, Assembly, JavaScript
